Description

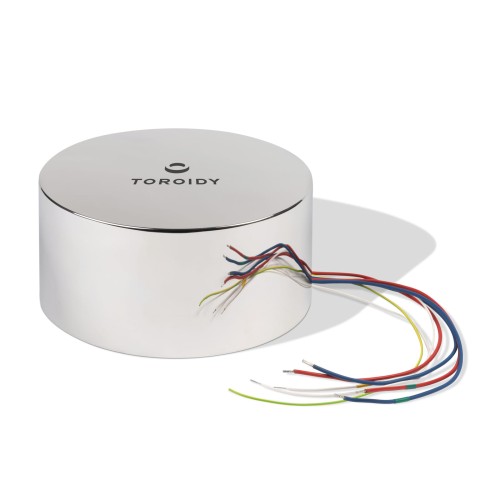

Supreme audio grade transformer is dedicated for use in power amplifiers and other high-end audio devices. In Supreme audio grade, noiseless transformer price You'll get transformer wound on highest inductive, laboratory selected and tested core. For a best noise reducion core and all the windings are impregnated . Transformer will also has electric and electromagnetic shields. Whole transformer is vacuum encapsuled, epoxy filled in a polished, stainless steel box.
Available output voltages:
110V, 2x100V, 120V, 2x120V, 130V, 2x130V, 140V, 2x140V, 150V, 2x150V, 160V, 2x160V, 170V, 2x170V, 180V, 2x180V, 190V, 2x190V, 200V, 2x200V, 210V, 2x210V, 220V, 2x220V, 230V, 2x230V
!!! WARNING !!! Transformers with a nomina power 400VA and above produce a high inrush current. We recommend using the inrush current limiter .
If You need other output volatges, please contact Us by mail info@toroidy.pl .
Technical data
| Nominal power | 500VA |
| Input voltage | 230V |
| Output voltage | higher then 100V |
| Insulation strengh | 4kVA |
| Outer diameter | 170mm |
| Height | 80mm |
| Weight | 5,000kg |
