TTS0800 - Transformer TS800VA/230 - voltage from 10 to 50 V

Availability: on sale

Dispatched within: 4 working days

Gross price: 435,04 zł

Regular price:

435.04

Price (EUR): €103.58

Net price: 353,69 zł

Regular price:

Price (EUR): €84.21

* Output voltage:

* Mounting pad:

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Rating:

Manufacturer:

Product code: 95AE-547F7_20231108084700

Description

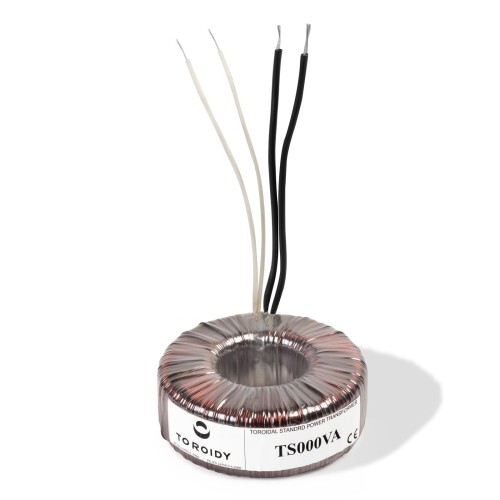

Single-phase toroidal transformers,manufactured and tested in compliance with EN61558. Designed and prepared for II class equipment. Suited for power supply circuitry of electric machines and electronic devices with low nonload losses and weight. To produce them, we use the most modern Ruff ® machines, which guarantees very tightly wound coil and high electrical performance.

Available output voltages:

110V, 2x100V, 120V, 2x120V, 130V, 2x130V, 140V, 2x140V, 150V, 2x150V, 160V, 2x160V, 170V, 2x170V, 180V, 2x180V, 190V, 2x190V, 200V, 2x200V, 210V, 2x210V, 220V, 2x220V, 230V, 2x230

!!! WARNING !!! Transformers with a nomina power 400VA and above produce a high inrush current. We recommend using the inrush current limiter .V

Technical data

Nominal power	800VA
Input voltage	230V
Output voltage	10-50V
Insulation strengh	4kVA
Outer diameter	153mm
Height	65mm
Weight	6,200 kg

M004 - Mounting pad M110

Toroidal transformer mounting pad. Diameter 110mm .

Price: 25,03 zł (€5.96)

Net price: 20,35 zł

Inrush current limiter for high power transformers

Inrush current limiter for high power transformers.

Price: 176,02 zł (€41.91)

Net price: 143,11 zł
