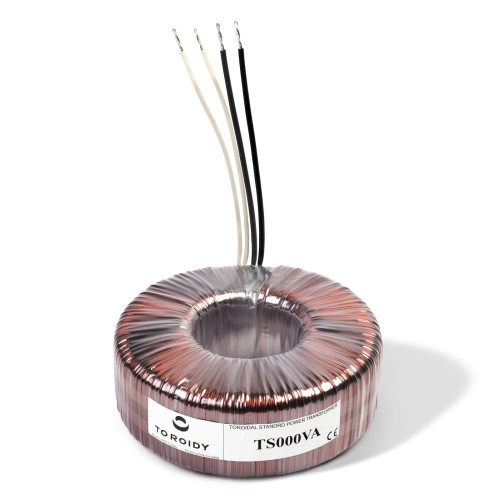

TTH0500 - Transformer TS500VA 230/12V H
Availability:
on sale
Dispatched within:
4 working days
Rating:
0
0
Manufacturer:
Product code:
95AE-547F7_20130610100349
Description
12VAC toroidal transformer for a general purpose include lightning, heating and many others.
Terminals are described on the label.
!!! WARNING !!! Transformers with a nomina power 400VA and above produce a high inrush current. We recommend using the inrush current limiter.
Technical data
| Nominal power | 500VA |
| Input voltage | 230V |
| Output voltage | 12V |
| Insulation strengh | 4kVA |
| Outer diameter | 140mm |
| Height | 54mm |
| Weight | 3,700kg |
