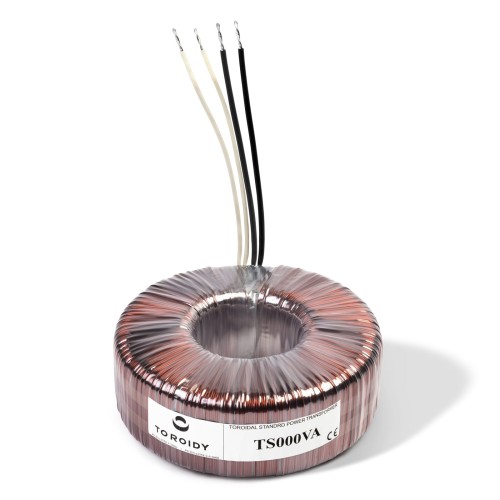

TTH0400 - Transformer TS400VA 230/12V H

Availability: on sale

Dispatched within: 4 working days

Gross price: 202,52 zł 202.52

Price (EUR): €45.51

Net price: 164,65 zł

Price (EUR): €37.00

* Mounting:

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Rating:

0

Manufacturer:

Product code: 95AE-547F7_20130610100241

Description

12VAC toroidal transformer for a general purpose include lightning, heating and many others.

Terminals are described on the label.

!!! WARNING !!! Transformers with a nomina power 400VA and above produce a high inrush current. We recommend using the inrush current limiter.

Technical data

Nominal power	400VA
Input voltage	230V
Output voltage	12V
Insulation strengh	4kVA
Outer diameter	124mm
Height	54mm
Weight	2,600kg
