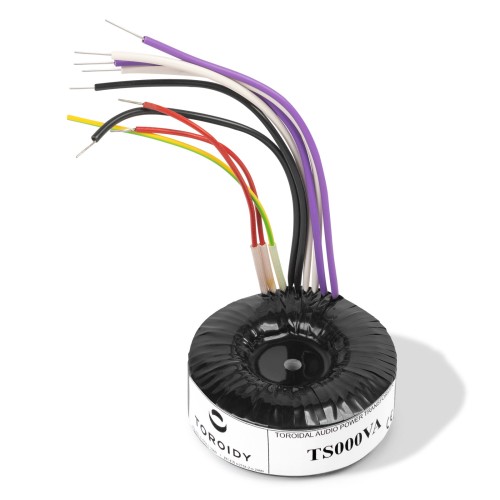

TSTA 0060/002 - Mains transformer for tubes
AUDIO grade and SUPREME transformers for amplifiers and other high-class tube audio devices.
Unlike commercial power line transformers, the AUDIO version is covered on the outside with a black Mylar tape which gives it an aesthetic appearance. The epoxy filled center with an opening for the M6 screw eliminates a need for an additional mounting bracket. The neoprene gum pad affixed to the bottom successfully eliminates transmission of vibrations.
The entire construction utilizes high-class, laboratory-tested parts. The core and the windings are impregnated, and the production process is being scrupulously controlled at every step.
Additional magnetic screening and the electric monitor of coated SYN-SHIELD copper tape between windings make the class AUDIO transformers one of the frontrunners in the area of safe use in the systems of electronic power supply.
SUPREME version is additionally shielded and potted in hand-made stainless steel box. Side-wiring mounting plate is also available.
We guarantee quiet performance and the highest electrical parameters.
|Input voltage||230V or 2x115V|
|Secondary SEC I||250V / 0,15A|
|Secondary SEC II||3,15 - 0 - 3,15V / 2,5A|
|Dimensions (Audio version)||Height 35mm, Outer diameter 86mm, Weight 0,75kg|
|Dimensions (SUPREME version)||Height 50mm, Outer diameter 105mm, Weight 1,3kg|
