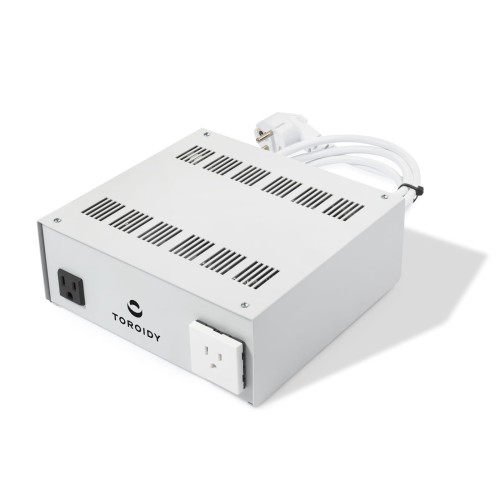

ATSS2500 - 230/110V 2500VA step-down autotransformer (metal housing, 2 outlets)
Price (EUR): €200.22
Price (EUR): €162.78
product unavailable
add to wish list
0
Description
230/110V 2500VA step-down autotransformer build in a metal housing with 2 110V outlets, for powering low and medium size appliances originated in USA, Japan, Canada and other countries with 100 - 115V electricity.
How to select transformer (converter, power supply adaptor) for 110 V USA appliances?
Manufacturers usually print appliance’s parameters on the attached tag, displaying its power in Watts [W]. In that case it’s simple. If the power is for example 245 W, select a transformer that is closest to that value on the available list, adding an extra margin of power for safety. In this example, a 300VA transformer should be selected. Some manufacturers display parameters in Amperes [A]or [Amps] as an electric current required for proper operation; for example 2.7 A or 2.7 Amps. You then need to multiply number of Amperes by 120. In this case 2.7 x 120 = 324. The result represents the approximate power of transformer needed. After adding a safety margin of at least 20%, 400 VA transformer should be selected.
WARNING!
The power of a transformer must always be higher than the power of the apliance connected to that transformer. Otherwise, either unit can sustain serious damage.
WARNING!
Transformers with a nomina power 1000VA and above produce a high inrush current. We recommend using the inrush current limiter .
Technical data
| Nominal power | 2500VA |
| Output voltage | 110V |
| Input voltage | 230V |
| Casing type | metal |
| Sockets | 2pcs |
| Inrush current limiter | No |
| Ground | Yes |
| Overload protection | fuse 16A |
| Weight | 11,45kg |
| Size | 300x300x90mm |
Related products
Inrush current limiter for high power transformers
Net price: 143,09 zł
Cable mount 110V USA plug
Net price: 35,38 zł
Flush mounted 110V USA socket
Net price: 78,35 zł
