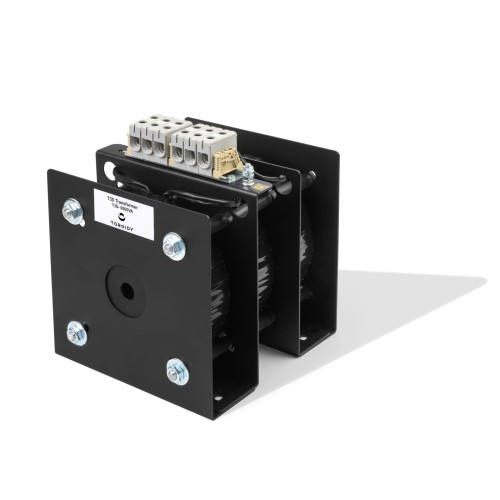

Three-phase transformer T3S 2000VA 3x400V / 3x400V

Availability: on sale
Dispatched within: up to 21 working days
Gross price: 1 971,47 zł

Regular price:

1971.47

Price (EUR): €428.58

Net price: 1 602,82 zł

Regular price:

Price (EUR): €348.44

quantity pcs.

product unavailable

add to wish list
* - Field mandatory
Rating: 0
Manufacturer: Toroidy.pl
Product code: 96C4-38146_20200424135320

Description

Three-phase transformer, based on toroidal cores, made in class I insulation and protection class IP-00, in accordance with EN 61558. Ambient temperature 40°C, insulation class B (130°C). General purpose transformers in industrial and power installations with full galvanic separation between primary and secondary windings. The use of toroidal cores ensures maximum efficiency, low mechanical hum, low magnetic field and off-load losses and compact dimensions. Transformers can be made according to the recipient's specification (any PRI and SEC voltages) and equipped with the following elements:

  • magnetic and static shielding
  • thermal protection
  • inrush current limiter



Files to download:

Technical data

Nominal power 2kVA
Primary voltage PRI / phase to phase [L1, L2, L3]: 3x 400V
Secondary voltage SEC / phase to phase [U, V, W]: 3x 400V
Vector group Dyn5 - standard; Yy0; Dd0; Yd5; Dyn11
Frequency 50-60Hz
Protection / insulation class: I / B (130⁰C)
Protection degree IP-00
Ambient temperature 40⁰C
PRI/SEC Insulation 4kVAC (RMS)
Typical efficiency (depends on nominal power) 95% - 99%
Dimensions / Weight 235 x 230 x 275 mm / 26 kg
