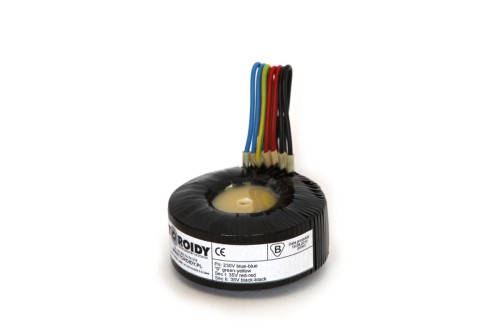

TTSA0060 - Transformer AUDIO TSA60VA - voltage higher then 100V

60 VA
175
PLN
TTSA0060 - Transformer AUDIO TSA60VA - voltage higher then 100V
TTSA0060 - Transformer AUDIO TSA60VA - voltage higher then 100V
in_stock
Availability:
on sale
Dispatched within:
14 days
Price: 175,00 zł
Net price: 142,28 zł
szt.

AUDIO grade transformers for use in amplifiers and other high-class audio devices.

Unlike commercial power line transformers, the AUDIO version is covered on the outside with a black Mylar tape which gives it an aesthetic appearance. The epoxy filled center with an opening for the M6 screw eliminates a need for an additional mounting bracket. The neoprene gum pad affixed to the bottom successfully eliminates transmission of vibrations.
The entire construction utilizes high-class, laboratory-tested parts. The core and the windings are impregnated, and the production process is being scrupulously controlled at every step.

Additional magnetic screening and the electric monitor of coated SYN-SHIELD copper tape between windings make the class AUDIO transformers one of the frontrunners in the area of safe use in the systems of electronic power supply.

We guarantee quiet performance and the highest electrical parameters.



Available voltages:

110V, 2x100V, 120V, 2x120V, 130V, 2x130V, 140V, 2x140V, 150V, 2x150V, 160V, 2x160V, 170V, 2x170V, 180V, 2x180V, 190V, 2x190V, 200V, 2x200V, 210V, 2x210V, 220V, 2x220V, 230V, 2x230V

Technical data

Nominal power 60VA
Input voltage 230V
Output voltage higher then 100V
Insulation strengh 4kVA
Outer diameter 85mm
Height 34mm
Weight 0,700kg

Related products

DIY AUDIO Chassis Toroidy DT1 DIY AUDIO Chassis Toroidy DT1

DIY AUDIO chassis Toroidy DT1

Price: 199,90 zł

DIY AUDIO Chassis Toroidy DT2 DIY AUDIO Chassis Toroidy DT2

DIY AUDIO chassis Toroidy DT2

Price: 259,90 zł

Product reviews (0)


Didn't find a suitable transformer ? Please write or call us.


Transformers with different parameters are available on individual request.
