TTG-EL84PP - Tube output transformer [8kOhm] 2xEL84 Push-pull or similar

Availability: on sale

Dispatched within: 10 working days

Gross price: 406,01 zł

Regular price:

406.01

Price (EUR): €96.67

Net price: 330,09 zł

Regular price:

Price (EUR): €78.59

* Version:

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Rating:

4.89

Manufacturer:

Product code: 8788-947C9

Description

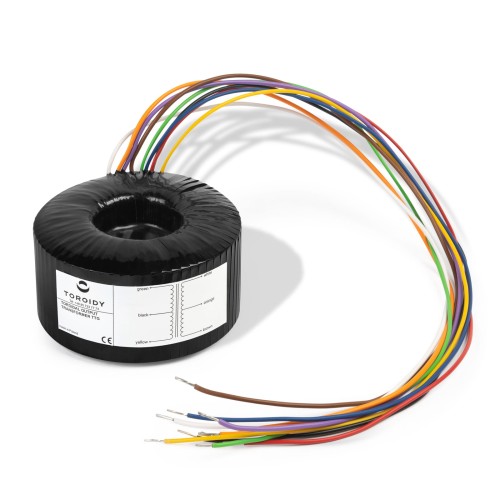

Toroidal Push-Pull output transformer for tubes:

2xEL84 , 2x6V6 (2x6П6C) , 2x6BQ5 , 6P14P (2x6П14П)

introduces benefits of toroidal cores to tube output. Through the use of innovative, internationally patented winding technology, we have achieved exceptional electrical parameters, such as flat frequency bandwidth in acoustic range, very low THD distortion and high quaity factor.

Transformer is also avilable in stainless steel box potted EXPO version.

!!! FOR NON STANDARD OUTPUT TRANSFORMERS !!!

!!! PLEASE KINDLY CONTACT US !!!

Technical data

Intended for	Push-Pull
Core type	Toroidal
Ultralinear tap	43%
CFB Windings	% Ra
Nominal Power	50W
Nominal anode current	200mA
Frequency bandwidth (-3dB)	8 Hz - 58 kHz
Secondary Impedance	4 and 8 Ω
Primary Impedance	8,0 kΩ
Turns Ratio (Np:Ns)	44,72:1(4Ω) , 31,62:1 (8Ω)
Primary Inductance Lp	404 H
Primary Leakage Inductance Lsp	4,33 mH
Total Primary DC Resistance	61,3 Ω
Effective Primary Capacitance	1,3 nF
Dimensions (standard)	115 mm (OD) x 65 mm (h), weight: 2,5 kg
Dimensions EXPO	120 mm (OD) x 80 mm (h), weight: 4,3 kg
