TTG-EL34PSE - Tube output UL transformer [1,65kOhm] EL34 / 6L6 PSE
Availability:
on sale
Dispatched within:
14 working days
Gross price:
502,03 zł
Regular price:
Price (EUR): €119.53
Net price:
408,15 zł
Regular price:
Price (EUR): €97.18
product unavailable
add to wish list
* - Field mandatory
Rating:
5
5
Manufacturer:
Product code:
80D7-18889_20150615120517
Description

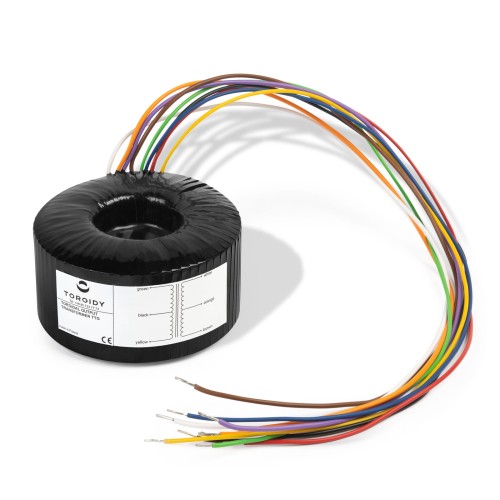

Toroidal Parallel Single Ended output transformer with UL tap, for tubes:
EL34, 6L6 , 2A3, 6P3S (6П3C) , 6CA7 , 6P27S (6П27C)
introduces benefits of toroidal cores to tube output. Through the use of innovative, internationally patented winding technology, we have achieved exceptional electrical parameters, such as flat frequency bandwidth in acoustic range, very low THD distortion and high quaity factor.
Transformer is also avilable in stainless steel box potted EXPO version.
!!! FOR NON STANDARD OUTPUT TRANSFORMERS !!!
!!! PLEASE KINDLY CONTACT US !!!
Files to download:
Technical data
| Intended for | Parallel Single Ended |
| Core type | Toroidal |
| Ultralinear tap | 43% |
| CFB Windings | % Ra |
| Nominal Power | 50W |
| Nominal anode current | 200 mA |
| Frequency bandwidth (-3dB) | 10 Hz - 53 kHz |
| Secondary Impedance | 4 and 8 Ω |
| Primary Impedance | 1,65 kΩ |
| Turns Ratio (Np:Ns) | 20,31:1 (4Ω) , 14,36:1 (8Ω) |
| Primary Inductance Lp | 32 H |
| Primary Leakage Inductance Lsp | 4,47 mH |
| Total Primary DC Resistance | 80,4 Ω |
| Effective Primary Capacitance | 9,1 nF |
| Dimensions (standard) | 115 mm (OD) x 65 mm (h), weight: 2,5 kg |
| Dimensions EXPO | 120 mm (OD) x 80 mm (h), weight: 4,4 kg |
neneadani10@gmail.com
So far I have used three pairs of SE transformers made to order with multiple secondary windings. From measurements with the spectrum analyzer, the amplifiers that use these transformers exceed 56kHz/-3dB. I appreciate them for how they reproduce the low frequencies: firm and strong.
