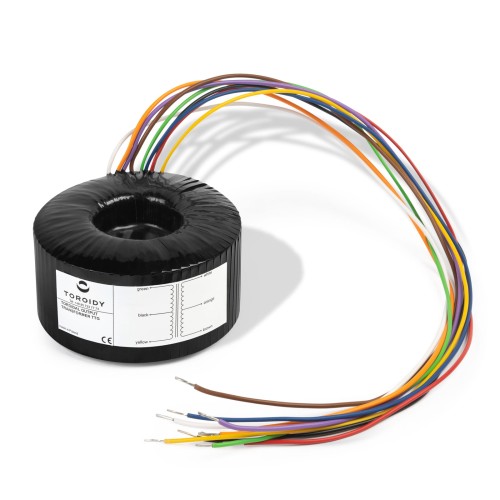

TTG-ECL86PP - Tube output transformer [10kOhm] 2xECL86 / 2xPCL86 Push-pull or similar
Price (EUR): €68.49
Price (EUR): €55.68
product unavailable
add to wish list
5
Description
Toroidal Push-Pull output transformer for tubes:
2xECL86, 2xPCL86
introduces benefits of toroidal cores to tube output. Through the use of innovative, internationally patented winding technology, we have achieved exceptional electrical parameters, such as flat frequency bandwidth in acoustic range, very low THD distortion and high quaity factor.
Transformer is also avilable in stainless steel box potted EXPO version.
!!! FOR NON STANDARD OUTPUT TRANSFORMERS !!!
!!! PLEASE KINDLY CONTACT US !!!
Technical data
| Intended for | Push-Pull |
| Core type | Toroidal |
| Ultralinear tap | 43% |
| CFB Windings | % Ra |
| Nominal Power | 25W |
| Nominal anode current | 150mA |
| Frequency bandwidth (-3dB) | 10Hz - 43kHz |
| Secondary Impedance | 4 and 8 Ω |
| Primary Impedance | 10 kΩ |
| Turns Ratio (Np:Ns) | 50,00:1 (4Ω) , 35,36:1 (8Ω) |
| Primary Inductance Lp | 277 H |
| Primary Leakage Inductance Lsp | 8,06 mH |
| Total Primary DC Resistance | 170 Ω |
| Effective Primary Capacitance | 14,3 nF |
| Dimensions (standard) | 90 mm (OD) x 55 mm (h), weight: 1,7 kg |
| Dimensions EXPO | 120 mm (OD) x 80 mm (h), weight: 2,8 kg |
