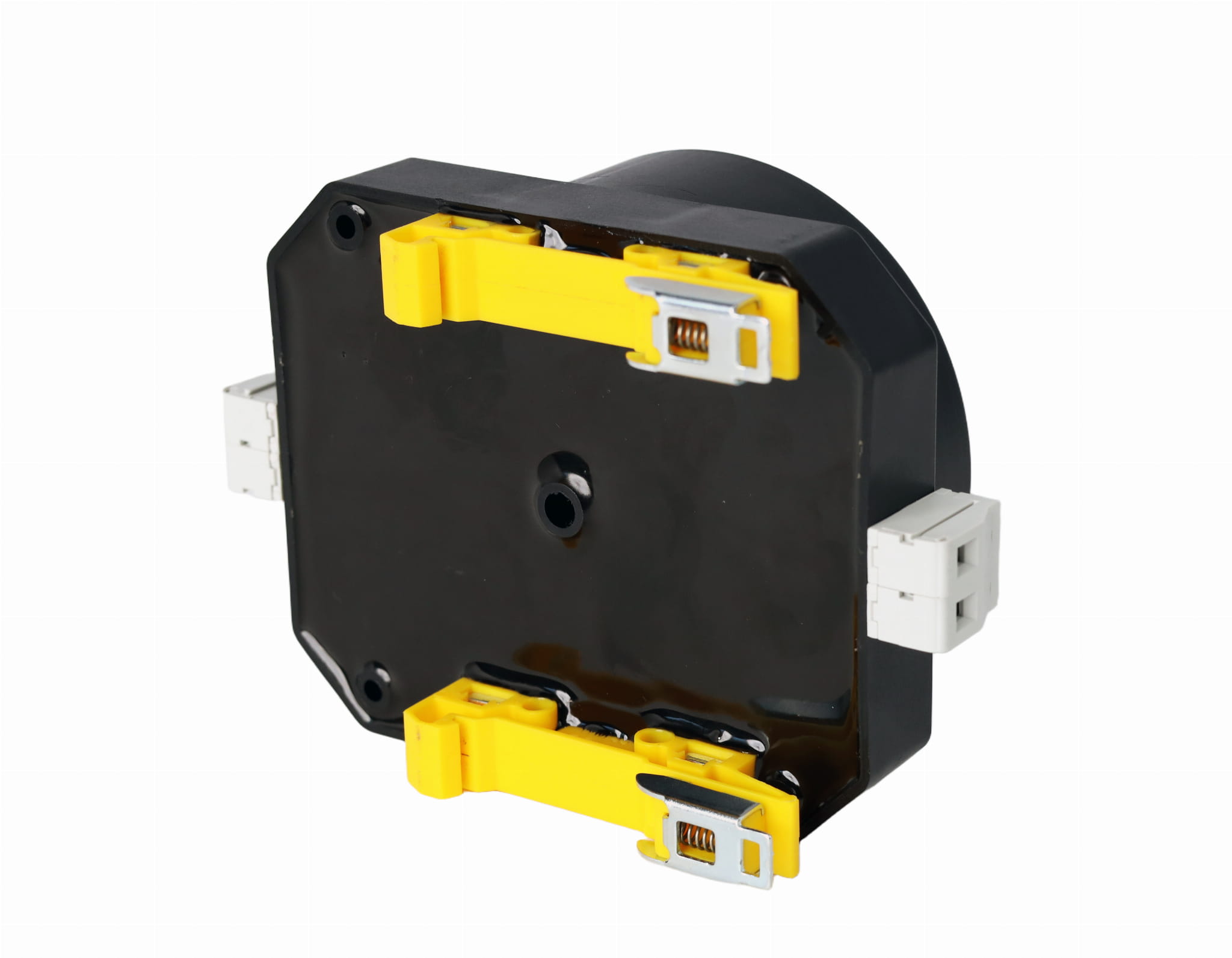

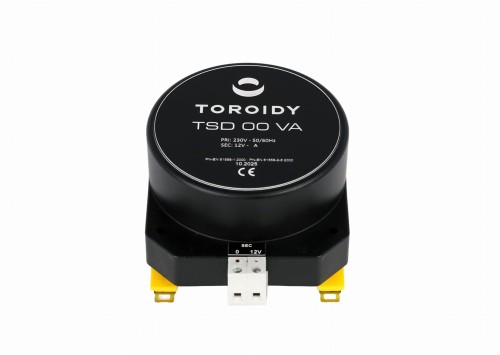

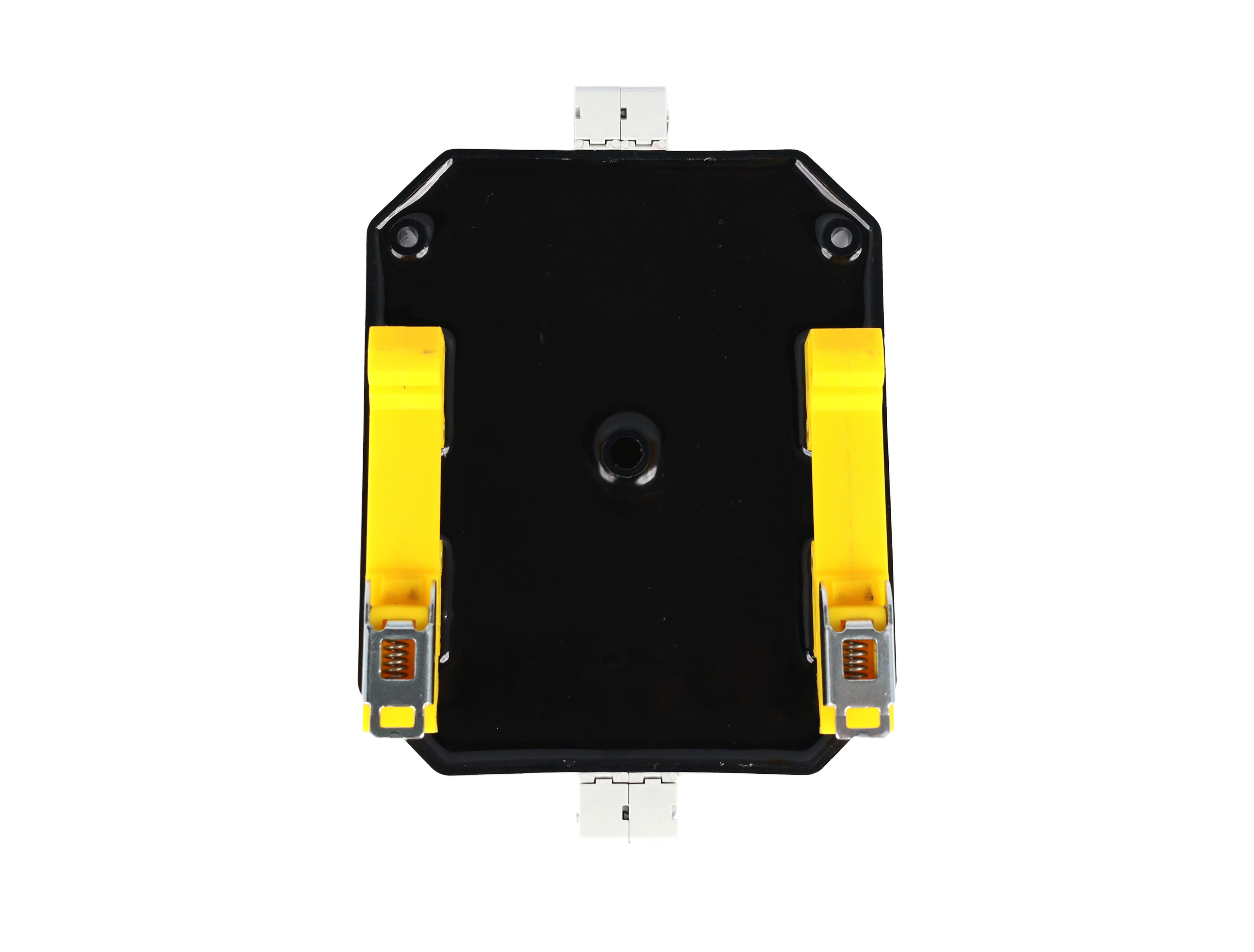

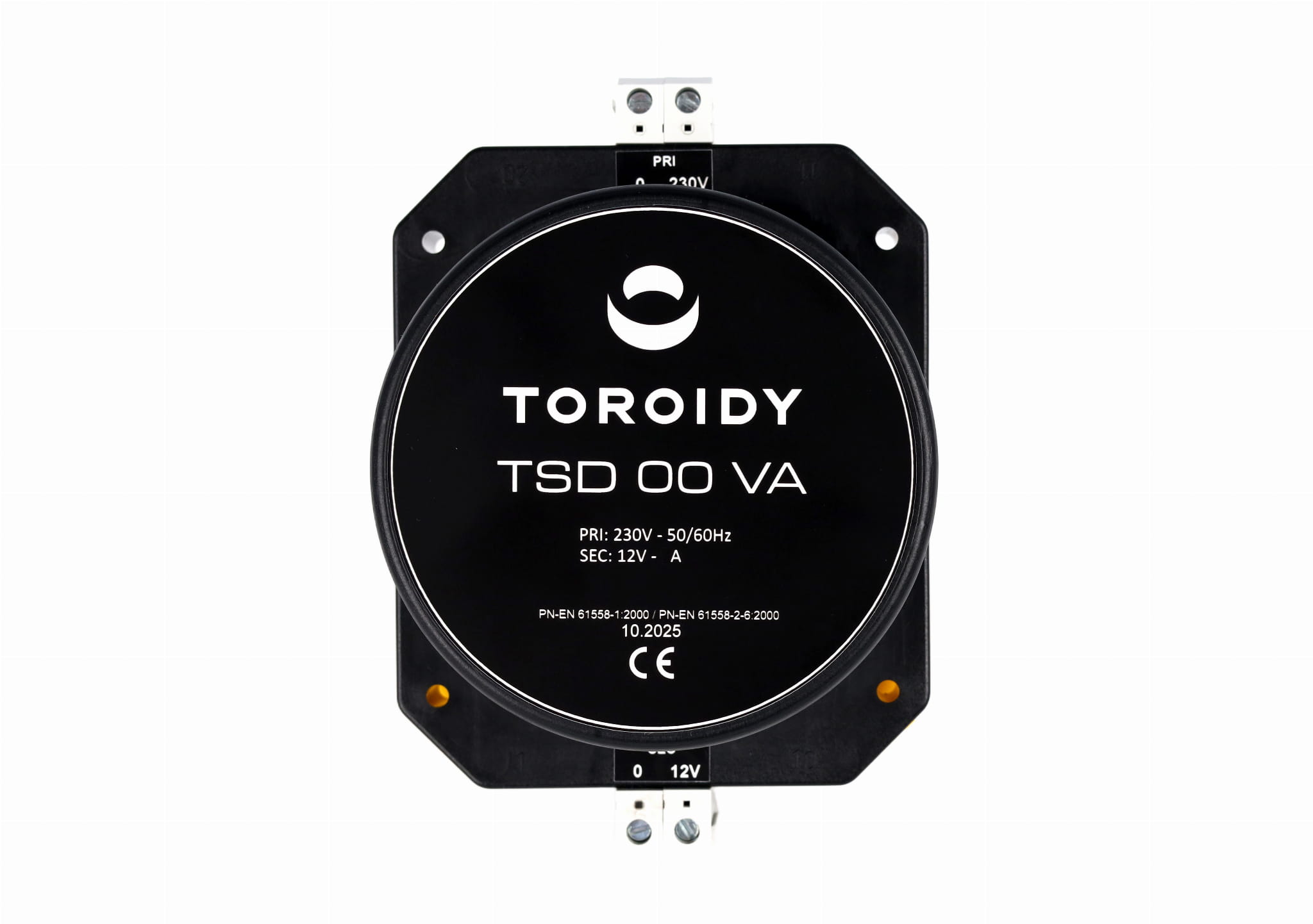

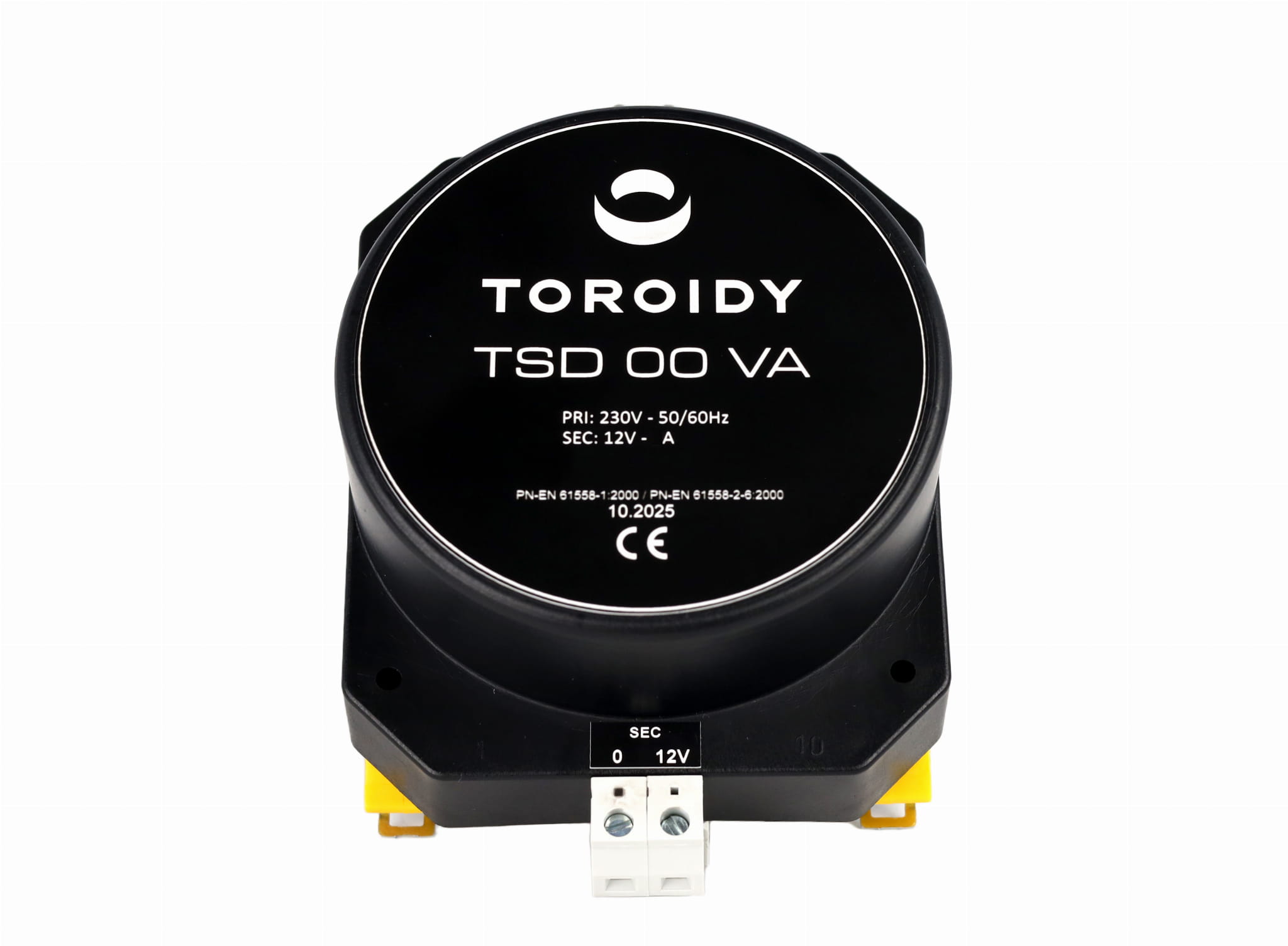

TSD-120VA DIN rail-mounted transformer TH35

Availability: on sale

Dispatched within: 10 working days

Gross price: 221,30 zł

Regular price:

221.30

Price (EUR): €52.69

Net price: 179,92 zł

Regular price:

Price (EUR): €42.84

* Input Voltage(s) PRI:

* Output Voltage(s) SEC:

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Rating:

Manufacturer:

Product code: 558A-840AC_20251123213458

Description

Single-phase toroidal 120VA mains transformer, manufactured with Class II insulation and IP-30 protection, in accordance with EN 61558.
Transformers designed to be used in low-voltage power supply systems and industrial and lighting systems.

The use of a toroidal core ensures maximum efficiency, a small stray field, and a compact dimensions. Transformers can be manufactured in custom specifications (any primary PRI and secondary SEC voltage(s)) and equipped with magnetic and electrostatic shielding, thermal or fuse protection.

Typical primary voltages: 2x 115V; 1x 230V; 1x 400V; 1x (0 - 230 - 400V)

Typical secondary voltages: 12V; 24V; 48V; 230V; 400V

Files to download:

TSD Transformers Datasheet.pdf

Technical data

Nominal Power	120VA
Insulation withstanding	> 4,0 kV
Primary Voltages	2x 115V; 1x 230V; 1x 400V or 1x (0 - 230 - 400V)
Secondary voltages	12V; 24V; 48V; 230V or 400V
Dimensions	143,3 mm x 103,3 mm x 55,5 mm
Installation method	DIN TH35 rail mounted
