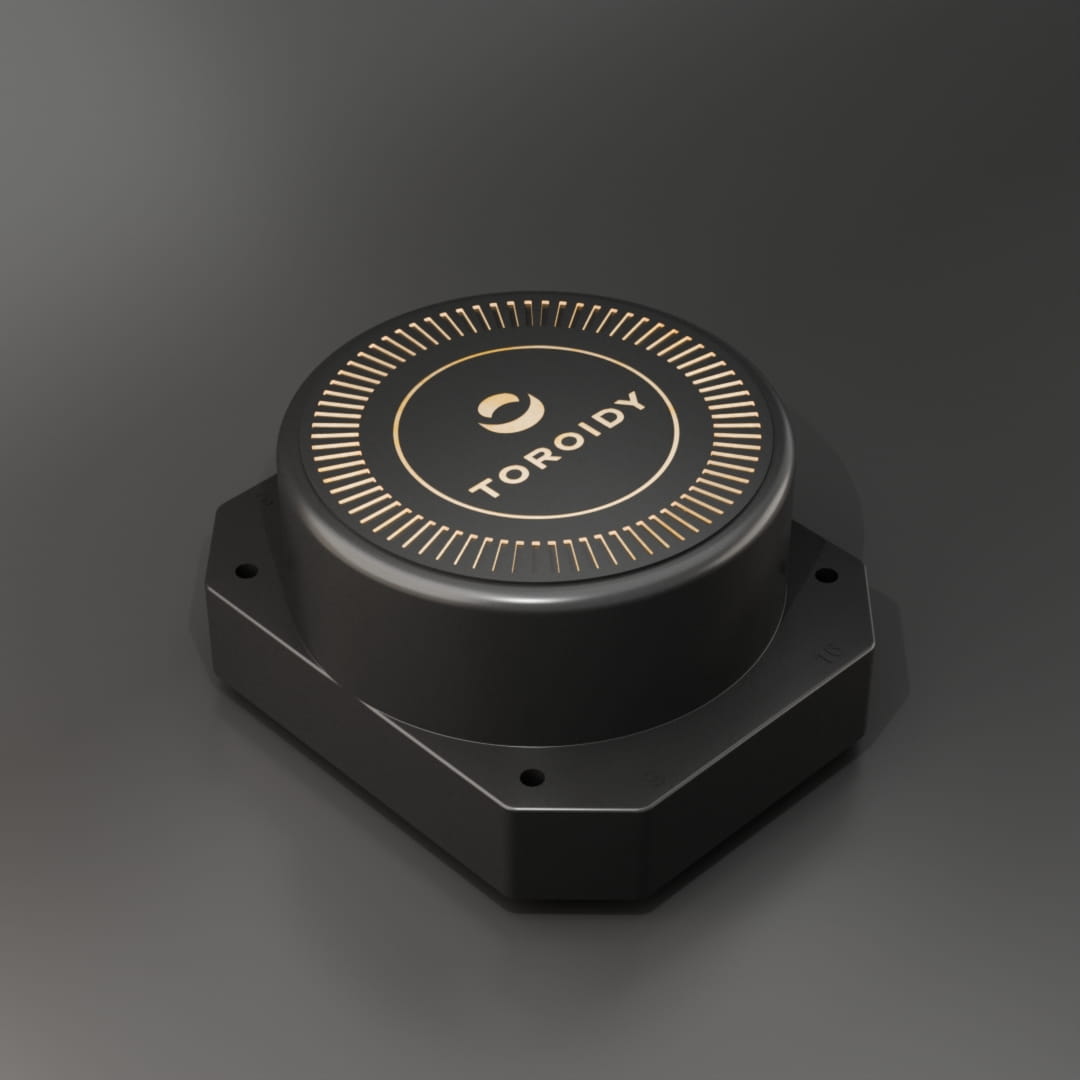

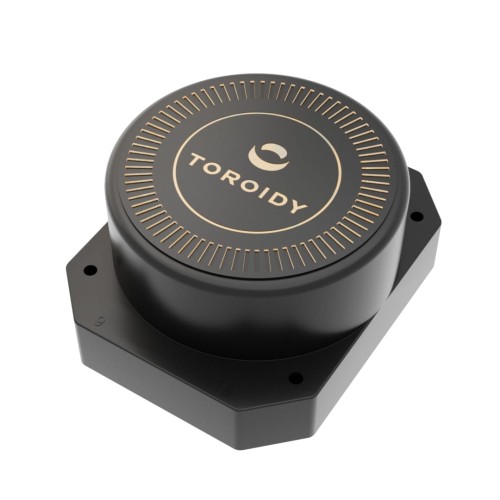

TAPCB-30VA AUDIO PCB Transformer - voltage to 120V
Availability:
on sale
Dispatched within:
14 working days
Gross price:
159,81 zł
Regular price:
Price (EUR): €38.05
Net price:
129,93 zł
Regular price:
Price (EUR): €30.93
product unavailable
add to wish list
* - Field mandatory
Rating:
5
5
Manufacturer:
Product code:
80D7-18889_20251231130250
Description
AUDIO-class transformers for PCB mounting, dedicated to be implemented in high-end electroacoustic equipment.
Single-phase, mains audio-grade toroidal transformers made with Class II insulation and IP00 protection, according to EN 61558.
Ultra-efficient, low-loss transformers for through-hole mounting in low-voltage PSUs designed for audio equipment. Toroidal technology ensures maximum efficiency, low leakage field and compact size. The polyurethane-flooded design ensures noiseless and vibration-free operation.
With additional optional magnetic shielding and electrical shielding between windings, made of coated SYN-SHIELD copper tape, the AUDIO-class PCB transformers can undoubtedly be considered world leaders in the field of safe application in power supply systems for high-end electronics.
Technical data
| Nominal power | 30VA |
| Primary voltages | 1x 230V AC / 2x 115V AC |
| Secondary voltages | selectable in the range of 3,15 VAC - 120 VAC |
| Nomial secondary current | depending on the output voltage |
| Efficiency | 85% |
| Off-load voltage | depending on the output voltage |
| Dimensions [L x W x H] | 90,2 x 73,2 x 44 mm |
