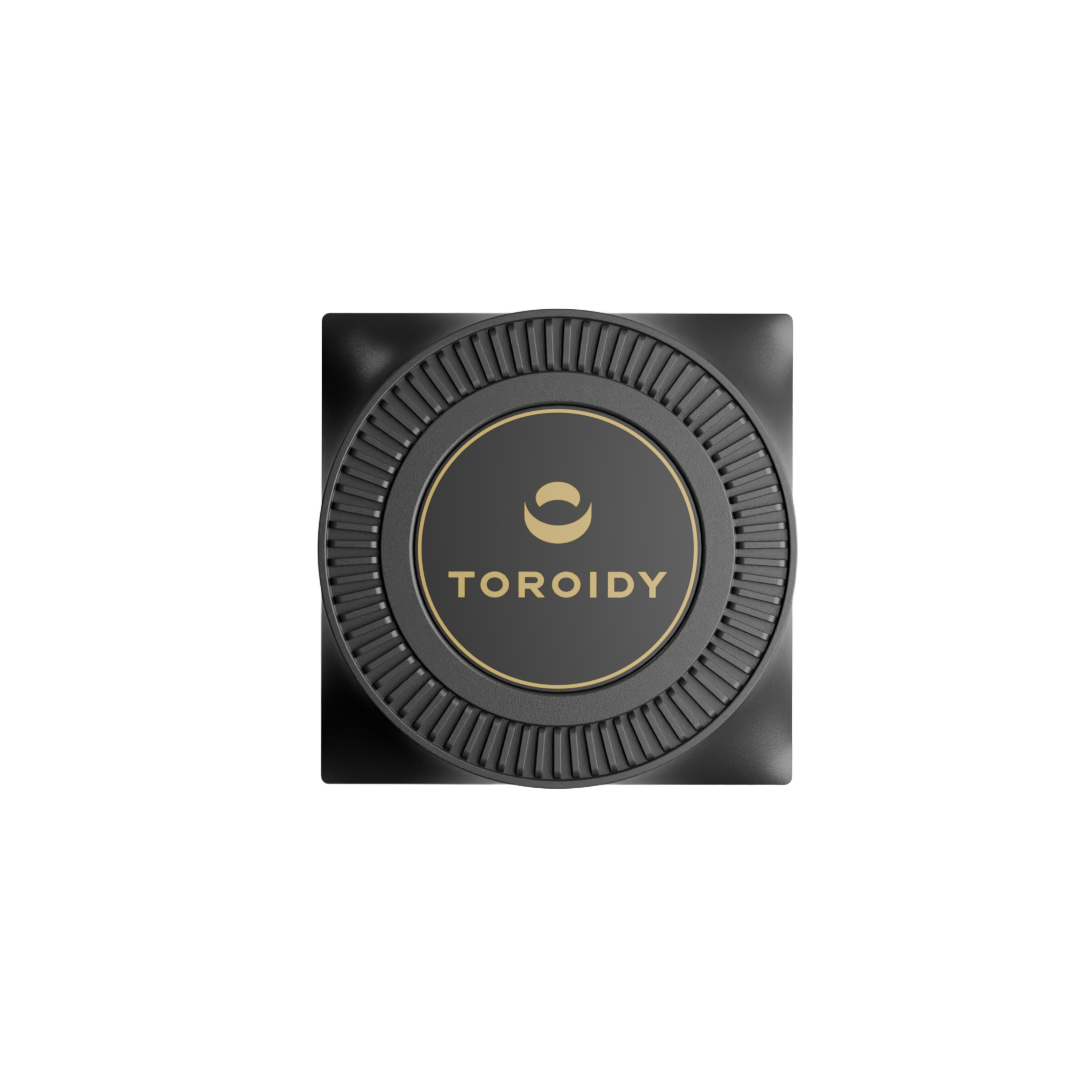

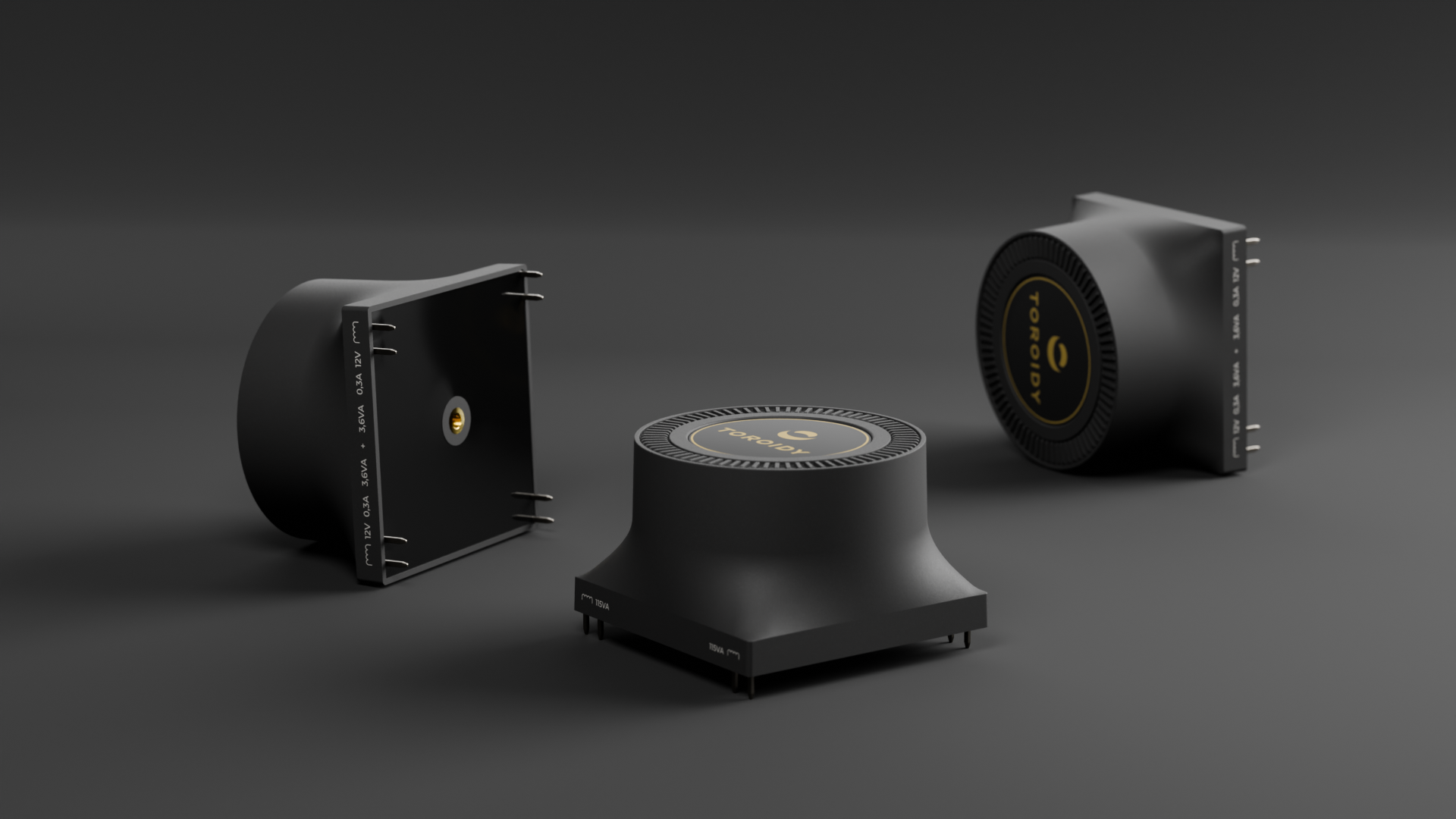

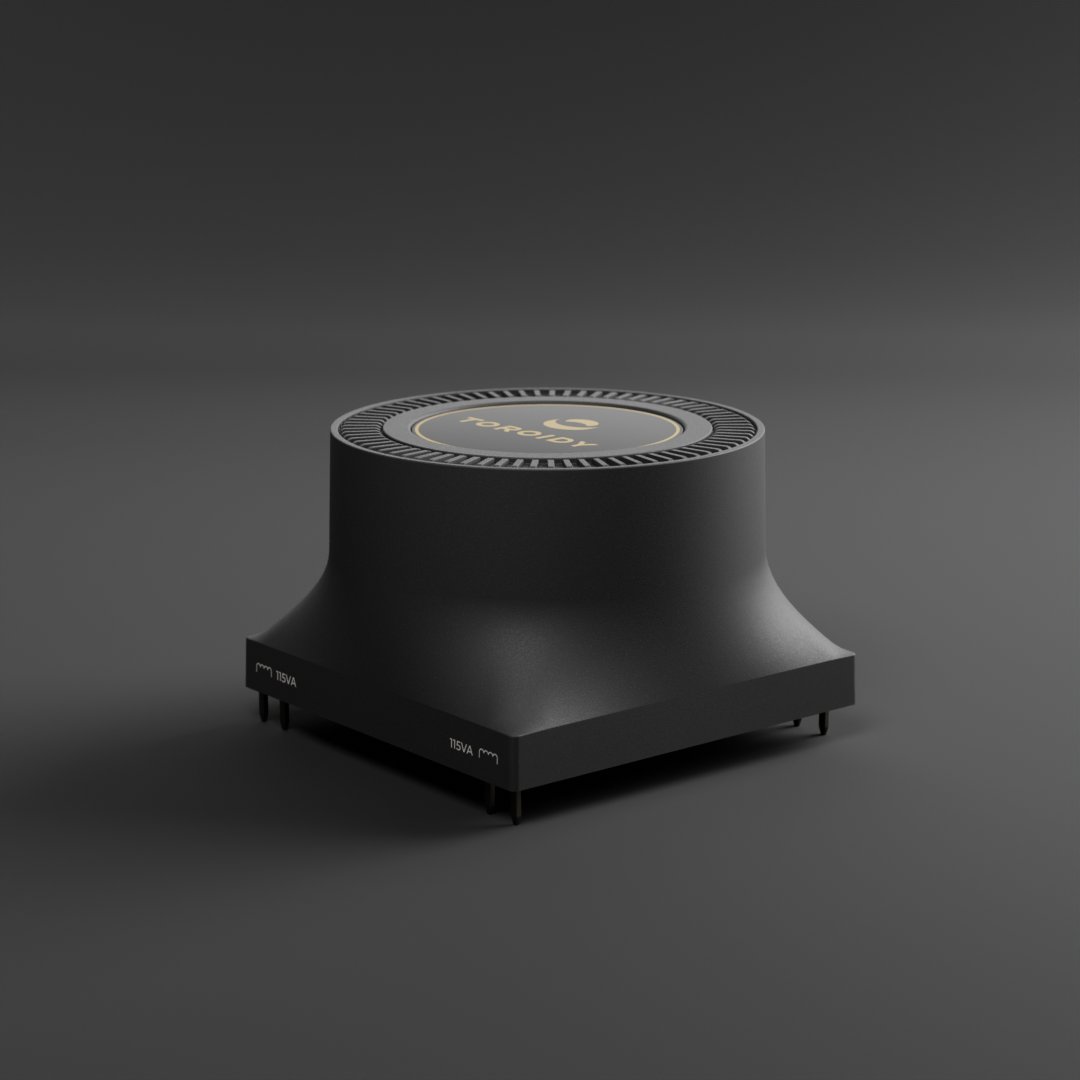

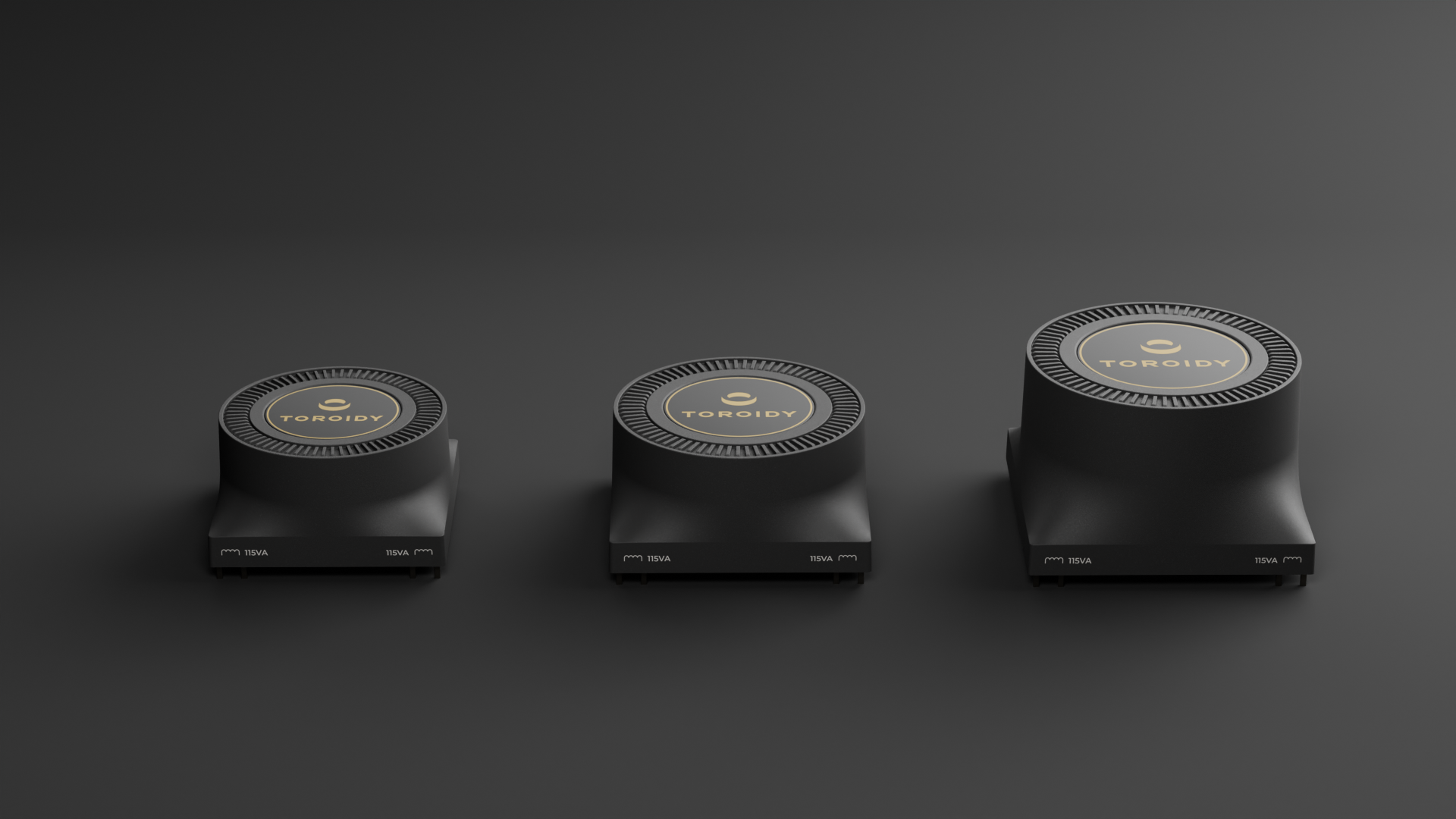

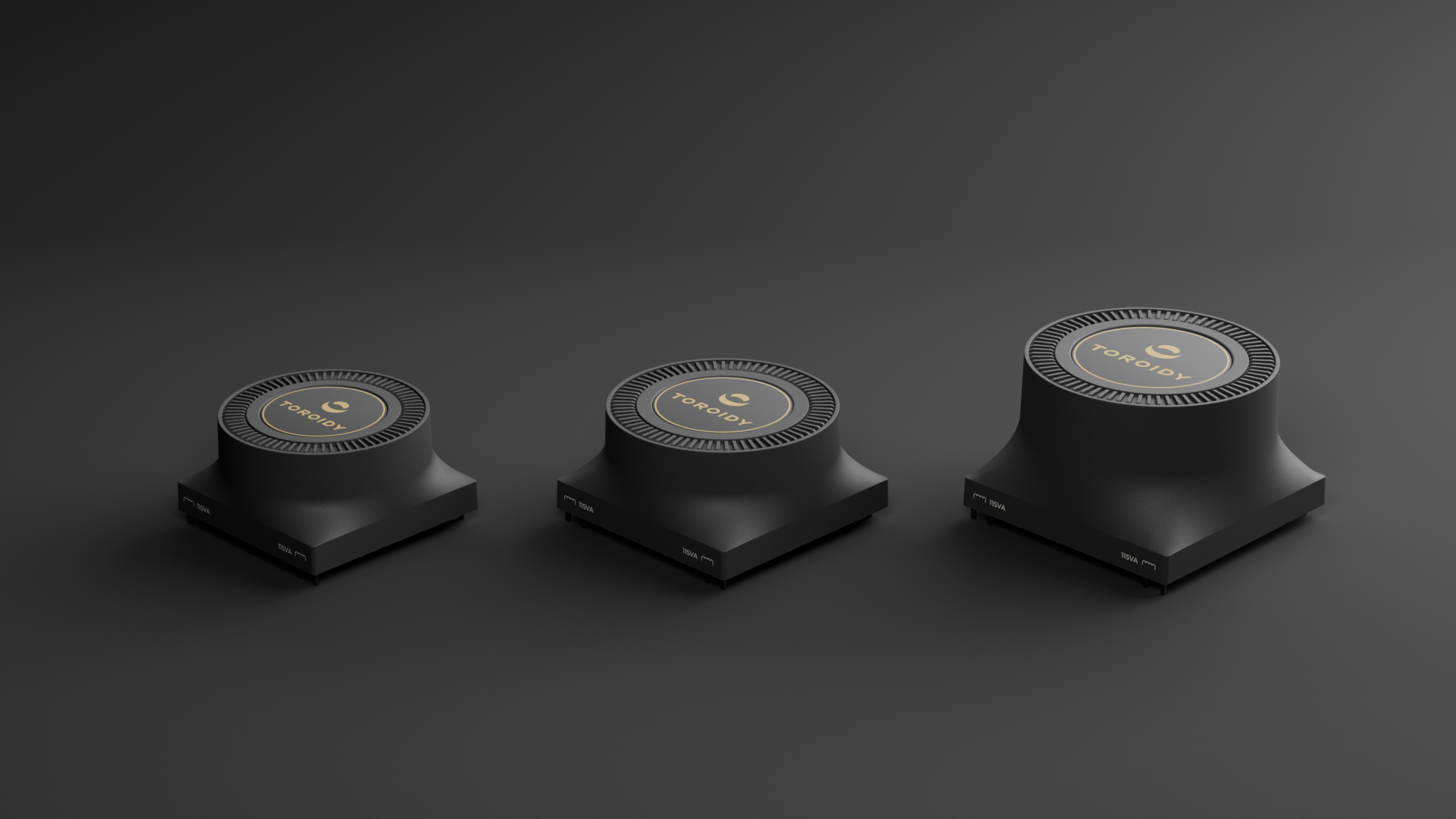

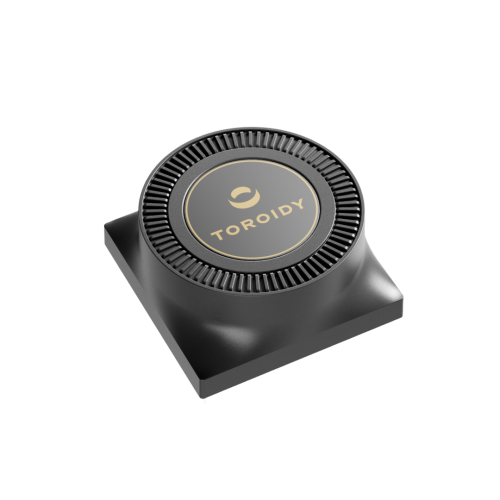

TAPCB-10VA-2x22 - AUDIO PCB Transformer 2x115V/2x22V
Availability:
on sale
Dispatched within:
14 working days
Gross price:
135,24 zł
Regular price:
Price (EUR): €32.20
Net price:
109,95 zł
Regular price:
Price (EUR): €26.18
product unavailable
add to wish list
Rating:
5
5
Manufacturer:
Product code:
80D7-18889_20250717124454
Description
AUDIO-class transformers for PCB mounting, dedicated to be implemented in high-end electroacoustic equipment.
Single-phase, mains audio-grade toroidal transformers made with Class II insulation and IP00 protection, according to EN 61558.

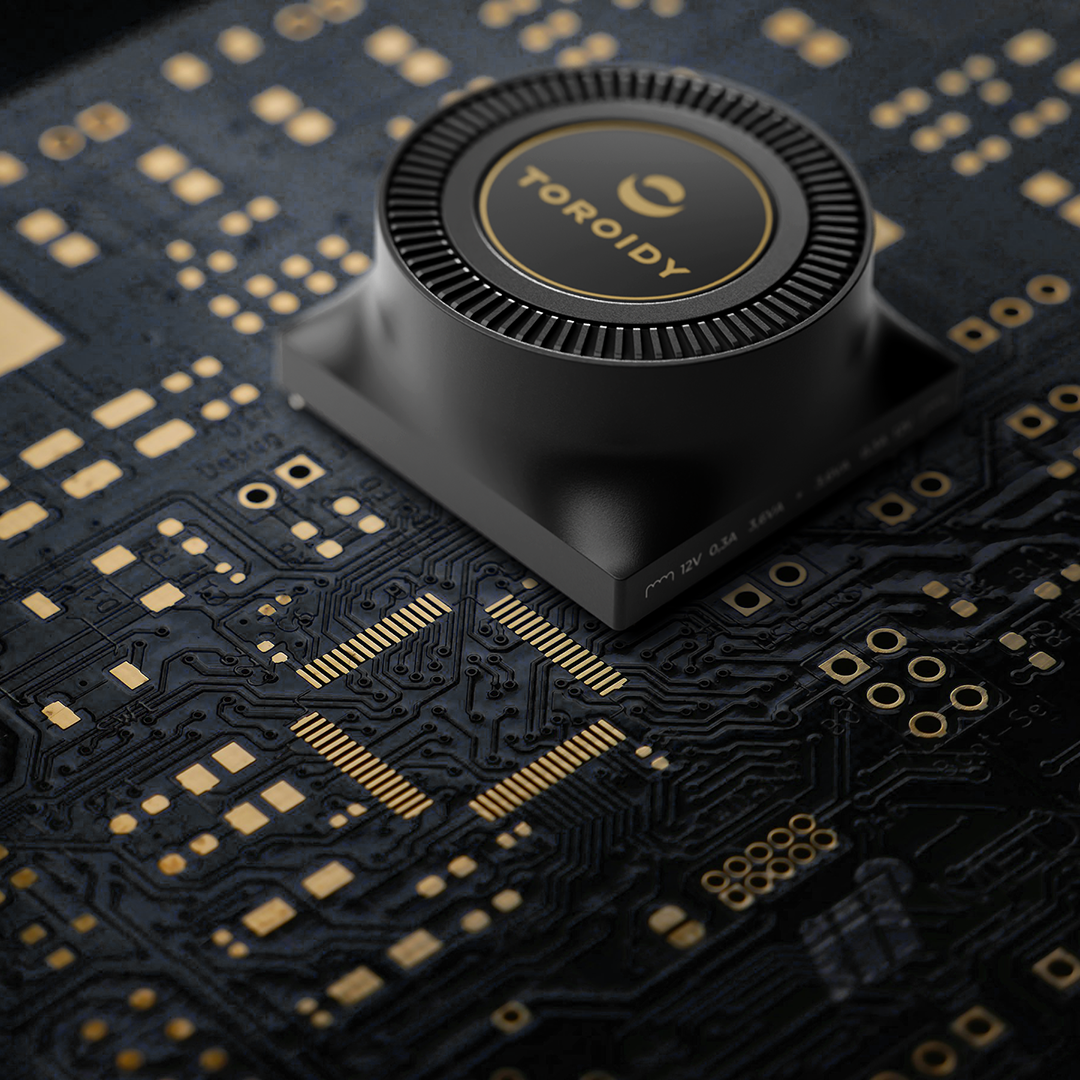

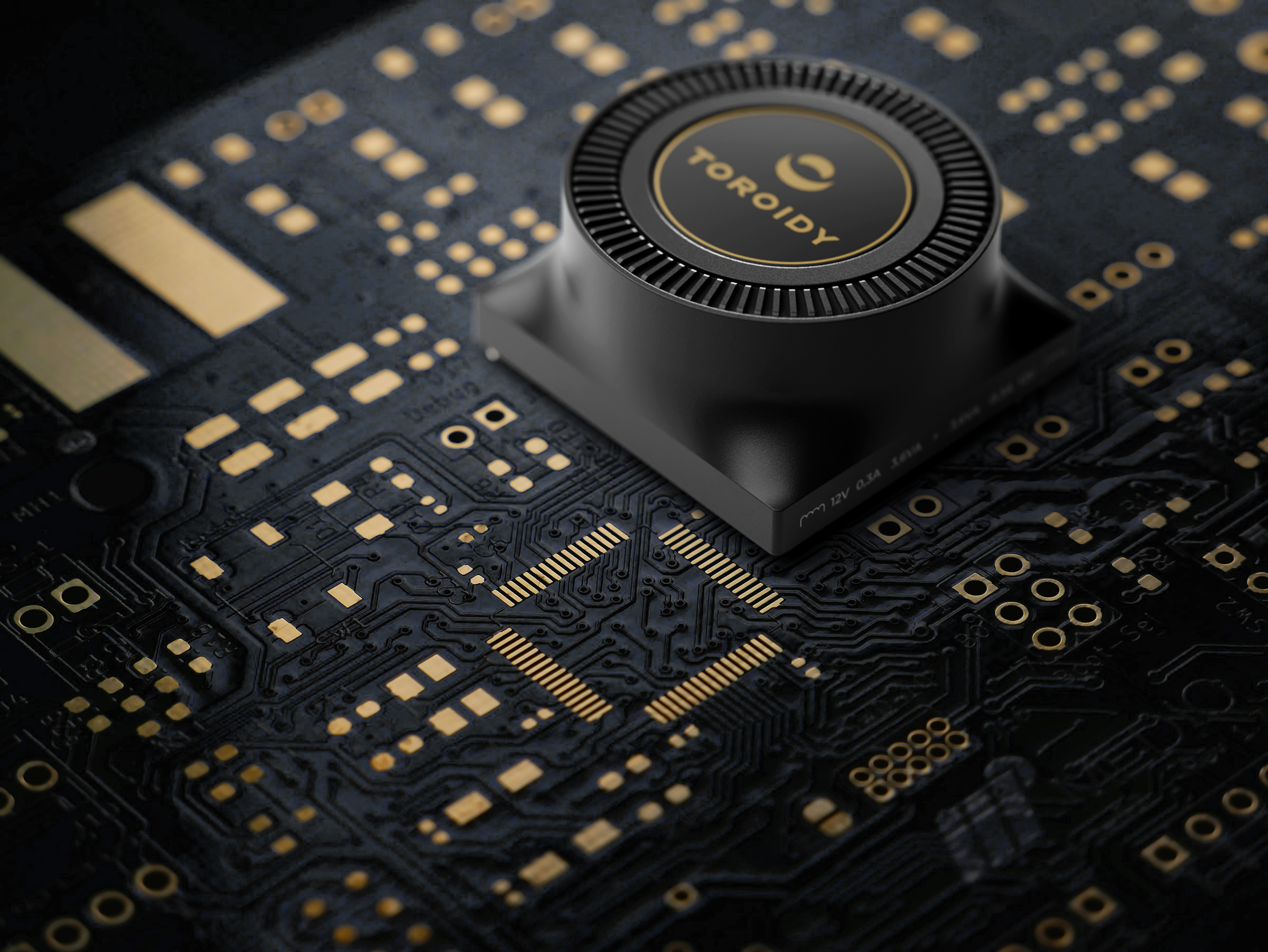

Ultra-efficient, low-loss transformers for through-hole mounting in low-voltage PSUs designed for audio equipment. Toroidal technology ensures maximum efficiency, low leakage field and compact size. The polyurethane-flooded design ensures noiseless and vibration-free operation.
With additional optional magnetic shielding and electrical shielding between windings, made of coated SYN-SHIELD copper tape, the AUDIO-class PCB transformers can undoubtedly be considered world leaders in the field of safe application in power supply systems for high-end electronics.
Technical data
| Nominal power | 10 VA |
| Primary voltages | 115V AC / 230V AC |
| Secondary voltages | 2x 22V AC |
| Nomial secondary current | 2x 227mA |
| Efficiency | 93% |
| Off-load voltage | 2x 24,83V AC |
| Dimensions [L x W x H] | 55,0 x 55,0 x 26,0 mm |
