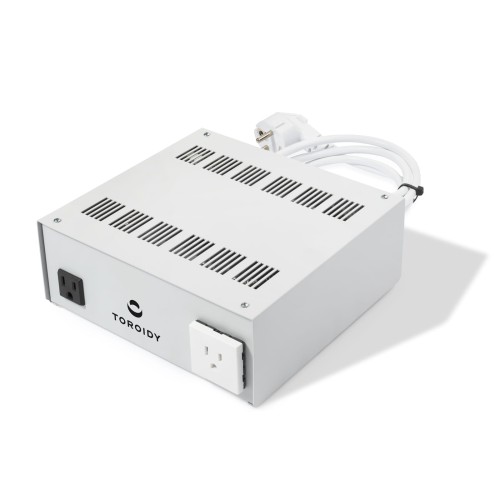

ATSS4000 - 230/110V 4000VA step-down autotransformer (metal housing, 2 outlets) with inrush current limiter
230/110V 4000VA step-down autotransformer build in a metal housing with 2 110V outlets, for powering low and medium size appliances originated in USA, Japan, Canada and other countries with 100 - 115V electricity. Equipped with inrush current limiter.
How to select transformer (converter, power supply adaptor) for 110 V USA appliances?
Manufacturers usually print appliance’s parameters on the attached tag, displaying its power in Watts [W]. In that case it’s simple. If the power is for example 245 W, select a transformer that is closest to that value on the available list, adding an extra margin of power for safety. In this example, a 300VA transformer should be selected. Some manufacturers display parameters in Amperes [A]or [Amps] as an electric current required for proper operation; for example 2.7 A or 2.7 Amps. You then need to multiply number of Amperes by 120. In this case 2.7 x 120 = 324. The result represents the approximate power of transformer needed. After adding a safety margin of at least 20%, 400 VA transformer should be selected.
The power of a transformer must always be higher than the power of the apliance connected to that transformer. Otherwise, either unit can sustain serious damage.
Transformers with a nomina power 1000VA and above produce a high inrush current. We recommend using the inrush current limiter .
|Inrush current limiter||No|
|Overload protection||fuse 16A|
