ATSS1000 - 230/110V 1000VA step-down autotransformer (metal housing, 1 outlet)

Availability: on sale

Dispatched within: 3 working days

Price: 460,00 zł 460.00

Net price: 373,98 zł

quantity pcs.

product unavailable

add to wish list

Rating:

Manufacturer:

Product code: 4C2B-891B0_20130617145121

Description

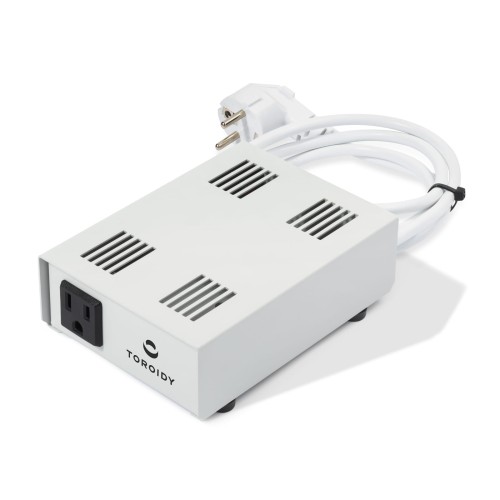

230/110V 1000VA step-down autotransformer build in a metal housing with 1 110V outlet, for powering low and medium size appliances originated in USA, Japan, Canada and other countries with 100 - 115V electricity.

How to select transformer (converter, power supply adaptor) for 110 V USA appliances?

Manufacturers usually print appliance’s parameters on the attached tag, displaying its power in Watts [W]. In that case it’s simple. If the power is for example 245 W, select a transformer that is closest to that value on the available list, adding an extra margin of power for safety. In this example, a 300VA transformer should be selected. Some manufacturers display parameters in Amperes [A]or [Amps] as an electric current required for proper operation; for example 2.7 A or 2.7 Amps. You then need to multiply number of Amperes by 120. In this case 2.7 x 120 = 324. The result represents the approximate power of transformer needed. After adding a safety margin of at least 20%, 400 VA transformer should be selected.

WARNING!

The power of a transformer must always be higher than the power of the apliance connected to that transformer. Otherwise, either unit can sustain serious damage.

WARNING!

Transformers with a nomina power 1000VA and above produce a high inrush current. We recommend using the inrush current limiter .

Technical data

Nominal power	1000VA
Output voltage	110V
Input voltage	230V
Casing type	metal
Sockets	1pcs
Inrush current limiter	No
Ground	Yes
Overload protection	fuse 8A
Weight	3,8kg
Size	130x180x50mm
