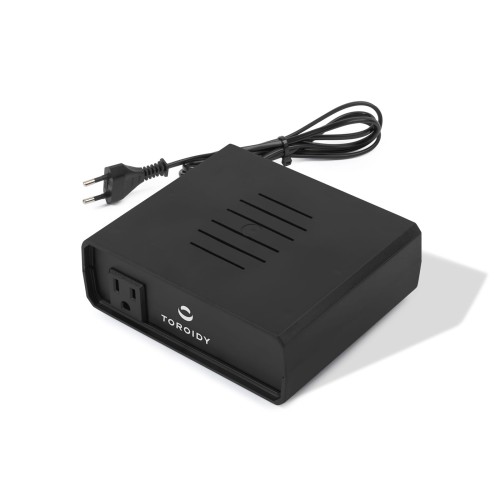

ATSS0800 - 230/110V 800VA step-down autotransformer (plastic housing, 1 outlet)

Availability: on sale
Dispatched within: 3 working days
Price: 350,00 zł 350.00
Net price: 284,55 zł
quantity pcs.

product unavailable

add to wish list
Rating: 5
Product code: 4C2B-891B0_20131023190310


230/110V 800VA step-down autotransformer build in a plastic housing with 1 110V outlet, for powering low and medium size appliances originated in USA, Japan, Canada and other countries with 100 - 115V electricity.

How to select transformer (converter, power supply adaptor) for 110 V USA appliances?

Manufacturers usually print appliance’s parameters on the attached tag, displaying its power in Watts [W]. In that case it’s simple. If the power is for example 245 W, select a transformer that is closest to that value on the available list, adding an extra margin of power for safety. In this example, a 300VA transformer should be selected. Some manufacturers display parameters in  Amperes [A]or [Amps] as an electric current required for proper operation; for example 2.7 A or 2.7 Amps. You then need to multiply number of Amperes by 120. In this case 2.7 x 120 = 324. The result represents the approximate power of transformer needed. After adding a safety margin of at least 20%, 400 VA transformer should be selected.


The power of a transformer must always be higher than the power of the apliance connected to that transformer. Otherwise,  either unit can sustain serious damage.

Technical data

Nominal power 800VA
Output voltage 110V
Input voltage 230V
Casing type plastic
Sockets 1pcs
Inrush current limiter No
Ground Yes
Overload protection self resettable thermal protection
Weight 3,2kg
Size 165x180x60mm
