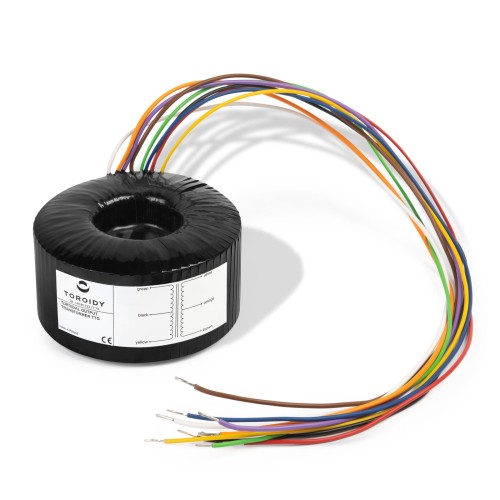

TTG-CFB4000PP - Tube output CFB transformer [4kOhm] Cathode Feedback Push-pull

Availability: on sale

Dispatched within: 14 working days

Gross price: 568,01 zł

Regular price:

568.01

Price (EUR): €135.24

Net price: 461,80 zł

Regular price:

Price (EUR): €109.95

* Version:

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Rating:

4.8

Manufacturer:

Product code: 0876-4441D_20170209142435

Description

Ultra-wide bandwidth output toroidal transformer with Cathode Feedback CFB windings introduces benefits of toroidal cores to tube output. Cathode Feedback CFB winding allow You to take well know advantages of this kind of circuits such as larger damping factor an much better controlled, extremely quick, tight and powerfull bass response.
Cathode Feedback also minimizes THD and intermodulation distortions and makes total bandwidth ultra-wide without using overal negative feedback from output to input of Your amp. All of it makes Your sound amazing, detailed and spacious.

!!! FOR NON STANDARD OUTPUT TRANSFORMERS !!!

!!! PLEASE KINDLY CONTACT US !!!

Technical data

Intended for	Push-Pull CFB
Core type	Toroidal
Ultralinear tap	33%
CFB Windings	10% Ra
Nominal Power	80W
Nominal anode current	300 mA
Frequency bandwidth (-3dB)	16 Hz - 91 kHz
Secondary Impedance	4 and 8 Ω
Primary Impedance	4 kΩ
Turns Ratio (Np:Ns)	31,62:1 (4Ω) , 22,36:1 (8Ω)
Primary Inductance Lp	580 H
Primary Leakage Inductance Lsp	4,31 mH
Total Primary DC Resistance	65Ω
Effective Primary Capacitance	1,8 nF
Dimensions (standard)	115 mm (OD) x 65 mm (h), weight: 2,8 kg
Dimensions EXPO	120 mm (OD) x 80 mm (h), weight: 4,5 kg
