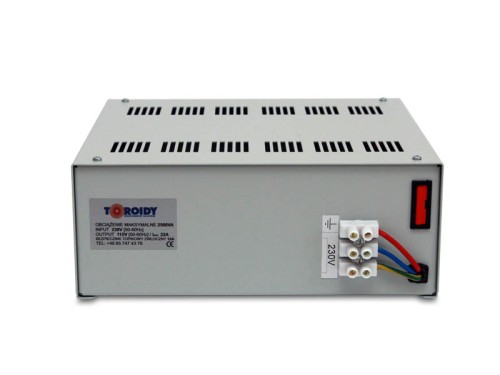

ATSS4000 - 230/110V 4000VA step-down autotransformer for USA campers and boats
Step-down 4000VA 230/110V autotransformers for USA campers and boats. Equipped with inrush current limiter and screw terminals for use with large diameter cables.
How to select transformer (converter, power supply adaptor) for 110 V USA appliances?
Manufacturers usually print appliance’s parameters on the attached tag, displaying its power in Watts [W]. In that case it’s simple. If the power is for example 245 W, select a transformer that is closest to that value on the available list, adding an extra margin of power for safety. In this example, a 300VA transformer should be selected. Some manufacturers display parameters in Amperes [A]or [Amps] as an electric current required for proper operation; for example 2.7 A or 2.7 Amps. You then need to multiply number of Amperes by 120. In this case 2.7 x 120 = 324. The result represents the approximate power of transformer needed. After adding a safety margin of at least 20%, 400 VA transformer should be selected.
The power of a transformer must always be higher than the power of the apliance connected to that transformer. Otherwise, either unit can sustain serious damage.
Transformers with a nomina power 1000VA and above produce a high inrush current. We recommend using the inrush current limiter .
|Inrush current limiter||No|
|Overload protection||fuse 16A|
